Microswitch for Delonghi EAM/ESAM/ECAM/ETAM coffee machines | Brewive
⚡ SmartFilter

Search for a spare part by coffee machine model

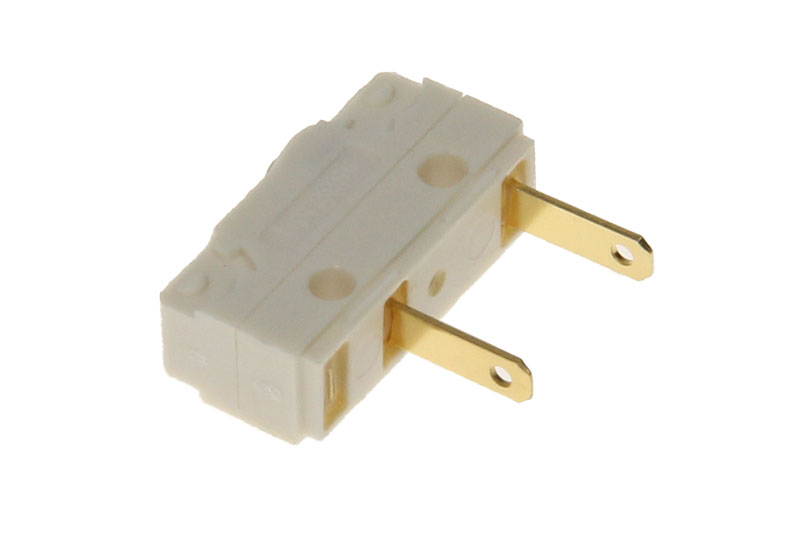

Microswitch for Delonghi EAM/ESAM/ECAM/ETAM coffee machines

Microswitch for Delonghi EAM/ESAM/ECAM/ETAM coffee machines
Price
$ 5.56 excl. VAT
Manufacturer
De'Longhi
Product code
5132110500
In stock
The microswitch senses the position of the brewing unit drive and signals its correct placement. When it wears out, the coffee machine reports an error or the brewing unit gets stuck, so it's worth replacing it in time. More
Add to favourites Add to compare list Shipping and Payment

What is the brewing unit drive microswitch

The microswitch is a small electrical switching component located directly on the drive or gearbox of the brewing unit. Its job is to sense the position of the mechanism during movement and inform the coffee machine's control electronics when the unit is in the correct position for brewing coffee or returning to its resting state.

Signs of wear or failure

When the microswitch stops switching reliably, the coffee machine may report a brewing unit error, get stuck during coffee preparation, or refuse to start the brewing cycle altogether. It's also common for the unit to fail to return to its starting position, for the machine to make unusual noises as the mechanism moves, or for the brewing process to stop halfway through.

Why replace the part in time

A damaged microswitch often blocks the entire brewing unit drive, which can lead to repeated strain on the motor and gearbox. Timely replacement prevents a bigger failure and restores smooth, trouble-free operation of the coffee machine.

Selection advice

When choosing the right part, it's important to check compatibility in the product table, as microswitches differ in mounting shape and connector depending on the specific coffee machine model.

Compatible with

  • ECAM28.465.MB PrimaDonna S De Luxe
  • ECAM28.466.M PrimaDonna S De Luxe
  • ECAM28.466.MB PrimaDonna S De Luxe
  • ECAM28.467.B PrimaDonna S
  • ECAM26.455.B PrimaDonna S De Luxe
  • ECAM26.455.BLB PrimaDonna S De Luxe
  • ECAM26.455.BWB PrimaDonna S De Luxe
  • ECAM26.455.C PrimaDonna S De Luxe
+ 205 more compatible models
  • ECAM26.455.GRB PrimaDonna S De Luxe
  • ECAM26.455.GYB PrimaDonna S De Luxe
  • ECAM26.455.M PRIMADONNA S DELUX
  • ECAM26.455.MB PrimaDonna S De Luxe
  • ECAM26.455.RB PrimaDonna S De Luxe
  • ECAM26.455.WB PrimaDonna S De Luxe
  • ECAM26.455.YEB PrimaDonna S De Luxe
  • ECAM28.465.AZ Vintage PrimaDonna S
  • ECAM28.465.BG Vintage PrimaDonna S
  • ECAM28.465.M PrimaDonna S De Luxe
  • ECAM23.450.B Intensa Cappuccino
  • ECAM23.450.S Intensa Cappuccino
  • ECAM44.620.S Eletta Plus
  • ECAM45.326.S Eletta Plus
  • ESAM6700 EX:1 PrimaDonna Avant
  • ECAM650.55.MS PrimaDonna Elite
  • ECAM650.75.MS PrimaDonna Elite
  • ECAM656.55.MS PrimaDonna Elite
  • ECAM656.75.MS PrimaDonna Elite
  • ETAM29.510.B Autentica
  • ETAM29.510.SB Autentica
  • ETAM29.620.SB Autentica Plus
  • ETAM29.660.S Autentica Cappuccino
  • ETAM29.660.SB Autentica Cappuccino
  • ETAM29.666.S Autentica Cappuccino
  • ETAM29.666.T Autentica Cappuccino
  • ECAM21.110.B Magnifica S
  • ECAM21.110.SB Magnifica S
  • ECAM21.110.W Magnifica S
  • ECAM21.116.SB Magnifica S
  • ECAM21.117.B Magnifica S
  • ECAM21.117.SB Magnifica S
  • ECAM21.117.W Magnifica S
  • ECAM22.110.B Magnifica S
  • ECAM22.110.SB Magnifica S
  • ECAM22.320.B Magnifica S Plus
  • ECAM22.320.SB Magnifica S Plus
  • ECAM22.360.B Magnifica S Cappuccino
  • ECAM22.360.S Magnifica S Cappuccino
  • ECAM22.366.B Magnifica Cappuccino S
  • ECAM23.120.B
  • ECAM23.120.SB
  • ECAM23.123.B
  • ECAM23.210.B Intensa
  • ECAM23.210.W Intensa
  • ECAM23.216.B Intensa
  • ECAM23.217.SB Intensa
  • ECAM23.420.SB Intensa
  • ECAM23.420.SR Intensa
  • ECAM23.420.SW Intensa
  • ECAM23.426.SB Intensa
  • ECAM23.427.B Intensa
  • ECAM23.427.R Intensa
  • ECAM23.450.B EX:3 Intensa Cappuccino
  • ECAM23.450.S EX:3 Intensa Cappuccino
  • ECAM23.466.B Cappuccino
  • ECAM23.466.S Cappuccino
  • ECAM24.210.SB Intensa
  • ECAM24.450.S Cappuccino
  • ECAM24.467.S Cappuccino
  • ECAM25.120.B Cappuccino
  • ECAM25.120.SB
  • ECAM25.128.B
  • ECAM25.128.R
  • ECAM25.128.Y
  • ECAM25.452.B Cappuccino
  • ECAM25.452.S Cappuccino
  • ECAM25.457.B Cappuccino
  • ECAM25.457.S Cappuccino
  • ECAM25.462.B
  • ECAM25.462.S
  • ECAM25.467.B
  • ECAM25.467.S
  • ECAM44.660.B Eletta Cappuccino
  • ECAM45.366.B Eletta Cappuccino
  • ECAM45.366.S Eletta Cappuccino
  • ECAM45.366.W Eletta Cappuccino Top
  • ECAM45.766.B Eletta Cappuccino Top
  • ECAM45.766.W Eletta Cappuccino Top
  • ESAM03.110 EX:1 Magnifica
  • ESAM03.110.S EX:1 Esperienza
  • ESAM03.120.S EX:1 Magnifica
  • ESAM04.110.B Magnifica
  • ESAM04.110.S Magnifica
  • ESAM04.320.S Magnifica
  • ESAM04.350.S Magnifica
  • ESAM3550.B Pronto Cappuccino
  • ESAM3600.S Magnifica Elegance
  • ESAM5400 EX:1 Perfecta
  • ESAM5400.GD EX:1 Perfecta
  • ESAM5400.R EX:1 Perfecta
  • ESAM5400.S EX:1 Perfecta
  • ESAM5450 EX:1 Perfecta
  • ESAM5550.BW Perfecta Cappuccino
  • ESAM5550.R Perfecta Cappuccino
  • ESAM5556.B Perfecta Cappuccino
  • ESAM5600 EX:1 Perfecta
  • ESAM5600 EX:2 Perfecta
  • ESAM5700.S Perfecta
  • ESAM6600 EX:3 PrimaDonna
  • ESAM6620 EX:3 PrimaDonna
  • ESAM6700 EX:2 PrimaDonna Avant
  • ESAM6700 EX:3 PrimaDonna Avant
  • ESAM6750 PrimaDonna Avant
  • ESAM6850.M PrimaDonna Exclusive
  • ESAM6900.M PrimaDonna Exclusive
  • ECAM22.366.S Magnifica Cappuccino S
  • ECAM23.460.B Cappuccino
  • ESAM02.110.SB Magnifica
  • ESAM03.105.S Magnifica
  • ESAM04.120.S Magnifica
  • ESAM2900 Caffe Cortina
  • ESAM3000.B EX:1 Magnifica
  • ESAM3200.G EX:1 Magnifica
  • ESAM3200.V EX:1 Magnifica
  • ESAM3240.O EX:1 Magnifica
  • ESAM4000.B EX:1 Magnifica
  • ESAM4200.S EX:1 Magnifica
  • ETAM36.365.M PrimaDonna Xs
  • ETAM36.365.MB PrimaDonna Xs
  • ETAM36.366.MB PrimaDonna Xs
  • ESAM3200.S EX:1 Magnifica
  • ESAM5400 Perfecta
  • ESAM5450 Perfecta
  • ESAM5500.G Perfecta
  • ESAM5500.L Perfecta
  • ESAM5500.P Perfecta
  • ESAM6700 PrimaDonna Avant
  • ESAM3500.S Pronto Cappuccino
  • ESAM4500 Magnifica Pronto Cappuccino
  • ESAM5500.B Perfecta Cappuccino
  • ESAM5500.S Perfecta Cappuccino
  • ESAM5500.T Titanium Perfecta
  • ESAM5500.W Perfecta Cappuccino
  • ESAM5550.B Perfecta Cappuccino
  • ESAM5600.S Perfecta Cappuccino
  • ECAM21.116.B Magnifica S
  • ECAM44.668.T Eletta Cappuccino
  • ECAM23.460.S Cappuccino
  • ECAM23.463.B Cappuccino
  • ECAM656.85.MS EX:1 PrimaDonna Elite
  • ECAM21.210.B Intensa
  • ECAM21.210.W Intensa
  • ECAM23.240.B Intensa
  • ECAM20.110.B Magnifica S
  • ECAM22.113.B Magnifica S
  • ECAM23.440.SB Intensa
  • ESAM03.126.S Magnifica
  • ESAM3200.GD EX:1 Magnifica
  • ESAM4008.B Magnifica
  • ESAM2200.S EX:1 S11 CAFFE' VENEZIA
  • ESAM2200.S EX:1 CAFFE' VENEZIA
  • ESAM2600 EX:1 MAGNIFICA CAFFE' CORSO
  • ESAM2600 EX:1 S11 MAGNIFICA CAFFE' CORSO
  • ESAM2800.SB EX:1 CAFFE' CORSO
  • ESAM2800.SB EX:1 S11 CAFFE' CORSO
  • ESAM2803.SB S11 CAFFE' CORSO
  • ECAM23.125.B
  • ESAM5400.BW EX:1 Perfecta
  • ESAM5400.GR EX:1 Perfecta
  • ECAM44.666.B Eletta Cappuccino
  • ECAM46.860.B Eletta Cappuccino Evo
  • ECAM550.65.W PrimaDonna Class Evo
  • ETAM29.510.WB Autentica
  • ECAM292.81.SB EX:2 Magnifica Evo
  • ECAM220.21.BG Magnifica Start
  • ECAM220.21.WW Magnifica Start
  • ECAM220.22.GB Magnifica Start
  • ECAM220.30.SB Magnifica Start
  • ECAM220.31.SSB Magnifica Start
  • ECAM222.20.B Magnifica Start
  • ECAM22.323.B Magnifica S Plus
  • ECAM220.21.B Magnifica Start
  • ECAM220.31.SB Magnifica Start
  • ECAM630.35.SB PrimaDonna Aromatic
  • ECAM630.55.SM PrimaDonna Aromatic
  • ECAM630.55.SSM PrimaDonna Aromatic
  • ECAM630.75.TM PrimaDonna Aromatic
  • ECAM630.75.TSM PrimaDonna Aromatic
  • EC9335.BK EX:4 La Specialista
  • EC9335.BK La Specialista
  • EC9335.M EX:4 La Specialista
  • EC9335.M La Specialista
  • EC9335.R EX:4 La Specialista
  • EC9335.R La Specialista
  • EC9355.BM La Specialista Prestigio
  • EC9355.M La Specialista Prestigio
  • EC9355.R La Specialista Prestigio
  • EC9665.M La Specialista Maestro
  • EC9865.M La Specialista Maestro Cold Brew
  • EC9885.M La Specialista Maestro Cold Brew
  • ESAM6650 EX:3 PrimaDonna
  • ECAM45.760.W Eletta Cappuccino Top
  • ESAM5708.S Perfecta
  • ESAM6720 PrimaDonna Avant
  • ECAM312.80.TB Magnifica Evo Next
  • ECAM310.60.B Magnifica Evo Next
  • ECAM310.60.GB Magnifica Evo Next
  • ECAM310.80.SB Magnifica Evo Next
  • EXAM440.35.B Rivelia
  • EXAM440.35.BG Rivelia
  • EXAM440.55.G Rivelia
  • EXAM440.55.W Rivelia
  • EC9555.BK OPERA COLD BREW LA SPECIALISTA
  • EC9555.M OPERA COLD BREW LA SPECIALISTA
Parameters
Compatible with ECAM28.465.MB PrimaDonna S De Luxe, ECAM28.466.M PrimaDonna S De Luxe, ECAM28.466.MB PrimaDonna S De Luxe, ECAM28.467.B PrimaDonna S, ECAM26.455.B PrimaDonna S De Luxe, ECAM26.455.BLB PrimaDonna S De Luxe, ECAM26.455.BWB PrimaDonna S De Luxe, ECAM26.455.C PrimaDonna S De Luxe, ECAM26.455.GRB PrimaDonna S De Luxe, ECAM26.455.GYB PrimaDonna S De Luxe, ECAM26.455.M PRIMADONNA S DELUX, ECAM26.455.MB PrimaDonna S De Luxe, ECAM26.455.RB PrimaDonna S De Luxe, ECAM26.455.WB PrimaDonna S De Luxe, ECAM26.455.YEB PrimaDonna S De Luxe, ECAM28.465.AZ Vintage PrimaDonna S, ECAM28.465.BG Vintage PrimaDonna S, ECAM28.465.M PrimaDonna S De Luxe, ECAM23.450.B Intensa Cappuccino, ECAM23.450.S Intensa Cappuccino, ECAM44.620.S Eletta Plus, ECAM45.326.S Eletta Plus, ESAM6700 EX:1 PrimaDonna Avant, ECAM650.55.MS PrimaDonna Elite, ECAM650.75.MS PrimaDonna Elite, ECAM656.55.MS PrimaDonna Elite, ECAM656.75.MS PrimaDonna Elite, ETAM29.510.B Autentica, ETAM29.510.SB Autentica, ETAM29.620.SB Autentica Plus, ETAM29.660.S Autentica Cappuccino, ETAM29.660.SB Autentica Cappuccino, ETAM29.666.S Autentica Cappuccino, ETAM29.666.T Autentica Cappuccino, ECAM21.110.B Magnifica S, ECAM21.110.SB Magnifica S, ECAM21.110.W Magnifica S, ECAM21.116.SB Magnifica S, ECAM21.117.B Magnifica S, ECAM21.117.SB Magnifica S, ECAM21.117.W Magnifica S, ECAM22.110.B Magnifica S, ECAM22.110.SB Magnifica S, ECAM22.320.B Magnifica S Plus, ECAM22.320.SB Magnifica S Plus, ECAM22.360.B Magnifica S Cappuccino, ECAM22.360.S Magnifica S Cappuccino, ECAM22.366.B Magnifica Cappuccino S, ECAM23.120.B, ECAM23.120.SB, ECAM23.123.B, ECAM23.210.B Intensa, ECAM23.210.W Intensa, ECAM23.216.B Intensa, ECAM23.217.SB Intensa, ECAM23.420.SB Intensa, ECAM23.420.SR Intensa, ECAM23.420.SW Intensa, ECAM23.426.SB Intensa, ECAM23.427.B Intensa, ECAM23.427.R Intensa, ECAM23.450.B EX:3 Intensa Cappuccino, ECAM23.450.S EX:3 Intensa Cappuccino, ECAM23.466.B Cappuccino, ECAM23.466.S Cappuccino, ECAM24.210.SB Intensa, ECAM24.450.S Cappuccino, ECAM24.467.S Cappuccino, ECAM25.120.B Cappuccino, ECAM25.120.SB, ECAM25.128.B, ECAM25.128.R, ECAM25.128.Y, ECAM25.452.B Cappuccino, ECAM25.452.S Cappuccino, ECAM25.457.B Cappuccino, ECAM25.457.S Cappuccino, ECAM25.462.B, ECAM25.462.S, ECAM25.467.B, ECAM25.467.S, ECAM44.660.B Eletta Cappuccino, ECAM45.366.B Eletta Cappuccino, ECAM45.366.S Eletta Cappuccino, ECAM45.366.W Eletta Cappuccino Top, ECAM45.766.B Eletta Cappuccino Top, ECAM45.766.W Eletta Cappuccino Top, ESAM03.110 EX:1 Magnifica, ESAM03.110.S EX:1 Esperienza, ESAM03.120.S EX:1 Magnifica, ESAM04.110.B Magnifica, ESAM04.110.S Magnifica, ESAM04.320.S Magnifica, ESAM04.350.S Magnifica, ESAM3550.B Pronto Cappuccino, ESAM3600.S Magnifica Elegance, ESAM5400 EX:1 Perfecta, ESAM5400.GD EX:1 Perfecta, ESAM5400.R EX:1 Perfecta, ESAM5400.S EX:1 Perfecta, ESAM5450 EX:1 Perfecta, ESAM5550.BW Perfecta Cappuccino, ESAM5550.R Perfecta Cappuccino, ESAM5556.B Perfecta Cappuccino, ESAM5600 EX:1 Perfecta, ESAM5600 EX:2 Perfecta, ESAM5700.S Perfecta, ESAM6600 EX:3 PrimaDonna, ESAM6620 EX:3 PrimaDonna, ESAM6700 EX:2 PrimaDonna Avant, ESAM6700 EX:3 PrimaDonna Avant, ESAM6750 PrimaDonna Avant, ESAM6850.M PrimaDonna Exclusive, ESAM6900.M PrimaDonna Exclusive, ECAM22.366.S Magnifica Cappuccino S, ECAM23.460.B Cappuccino, ESAM02.110.SB Magnifica, ESAM03.105.S Magnifica, ESAM04.120.S Magnifica, ESAM2900 Caffe Cortina, ESAM3000.B EX:1 Magnifica, ESAM3200.G EX:1 Magnifica, ESAM3200.V EX:1 Magnifica, ESAM3240.O EX:1 Magnifica, ESAM4000.B EX:1 Magnifica, ESAM4200.S EX:1 Magnifica, ETAM36.365.M PrimaDonna Xs, ETAM36.365.MB PrimaDonna Xs, ETAM36.366.MB PrimaDonna Xs, ESAM3200.S EX:1 Magnifica, ESAM5400 Perfecta, ESAM5450 Perfecta, ESAM5500.G Perfecta, ESAM5500.L Perfecta, ESAM5500.P Perfecta, ESAM6700 PrimaDonna Avant, ESAM3500.S Pronto Cappuccino, ESAM4500 Magnifica Pronto Cappuccino, ESAM5500.B Perfecta Cappuccino, ESAM5500.S Perfecta Cappuccino, ESAM5500.T Titanium Perfecta, ESAM5500.W Perfecta Cappuccino, ESAM5550.B Perfecta Cappuccino, ESAM5600.S Perfecta Cappuccino, ECAM21.116.B Magnifica S, ECAM44.668.T Eletta Cappuccino, ECAM23.460.S Cappuccino, ECAM23.463.B Cappuccino, ECAM656.85.MS EX:1 PrimaDonna Elite, ECAM21.210.B Intensa, ECAM21.210.W Intensa, ECAM23.240.B Intensa, ECAM20.110.B Magnifica S, ECAM22.113.B Magnifica S, ECAM23.440.SB Intensa, ESAM03.126.S Magnifica, ESAM3200.GD EX:1 Magnifica, ESAM4008.B Magnifica, ESAM2200.S EX:1 S11 CAFFE' VENEZIA, ESAM2200.S EX:1 CAFFE' VENEZIA, ESAM2600 EX:1 MAGNIFICA CAFFE' CORSO, ESAM2600 EX:1 S11 MAGNIFICA CAFFE' CORSO, ESAM2800.SB EX:1 CAFFE' CORSO, ESAM2800.SB EX:1 S11 CAFFE' CORSO, ESAM2803.SB S11 CAFFE' CORSO, ECAM23.125.B, ESAM5400.BW EX:1 Perfecta, ESAM5400.GR EX:1 Perfecta, ECAM44.666.B Eletta Cappuccino, ECAM46.860.B Eletta Cappuccino Evo, ECAM550.65.W PrimaDonna Class Evo, ETAM29.510.WB Autentica, ECAM292.81.SB EX:2 Magnifica Evo, ECAM220.21.BG Magnifica Start, ECAM220.21.WW Magnifica Start, ECAM220.22.GB Magnifica Start, ECAM220.30.SB Magnifica Start, ECAM220.31.SSB Magnifica Start, ECAM222.20.B Magnifica Start, ECAM22.323.B Magnifica S Plus, ECAM220.21.B Magnifica Start, ECAM220.31.SB Magnifica Start, ECAM630.35.SB PrimaDonna Aromatic, ECAM630.55.SM PrimaDonna Aromatic, ECAM630.55.SSM PrimaDonna Aromatic, ECAM630.75.TM PrimaDonna Aromatic, ECAM630.75.TSM PrimaDonna Aromatic, EC9335.BK EX:4 La Specialista, EC9335.BK La Specialista, EC9335.M EX:4 La Specialista, EC9335.M La Specialista, EC9335.R EX:4 La Specialista, EC9335.R La Specialista, EC9355.BM La Specialista Prestigio, EC9355.M La Specialista Prestigio, EC9355.R La Specialista Prestigio, EC9665.M La Specialista Maestro, EC9865.M La Specialista Maestro Cold Brew, EC9885.M La Specialista Maestro Cold Brew, ESAM6650 EX:3 PrimaDonna, ECAM45.760.W Eletta Cappuccino Top, ESAM5708.S Perfecta, ESAM6720 PrimaDonna Avant, ECAM312.80.TB Magnifica Evo Next, ECAM310.60.B Magnifica Evo Next, ECAM310.60.GB Magnifica Evo Next, ECAM310.80.SB Magnifica Evo Next, EXAM440.35.B Rivelia, EXAM440.35.BG Rivelia, EXAM440.55.G Rivelia, EXAM440.55.W Rivelia, EC9555.BK OPERA COLD BREW LA SPECIALISTA, EC9555.M OPERA COLD BREW LA SPECIALISTA
Manufacturing company De’Longhi Appliances S.r.l.
Address Via L. Galvani, 22, 31100 Treviso TV, Italy
