Coffee Machine Parts Diagrams: Find and Buy the Right Spare Part in One Click

Looking for the right spare part for your coffee machine? Brewive is the first and only store where you can open an interactive exploded-view diagram for your specific model, click directly on the broken part, and add it to your cart instantly. No hunting for part codes, no guesswork.

These are the same detailed exploded diagrams used by authorised service technicians. We've converted them into an interactive digital format, linked every position to our live inventory and pricing, and added a "Buy" button.

How does ordering through an exploded-view diagram work?

1. Open the parts diagram for your coffee machine. Select the brand and exact model — you'll find it on the rating label, usually on the bottom of the machine or behind the removable water tank (for example, ECAM350.75.S).

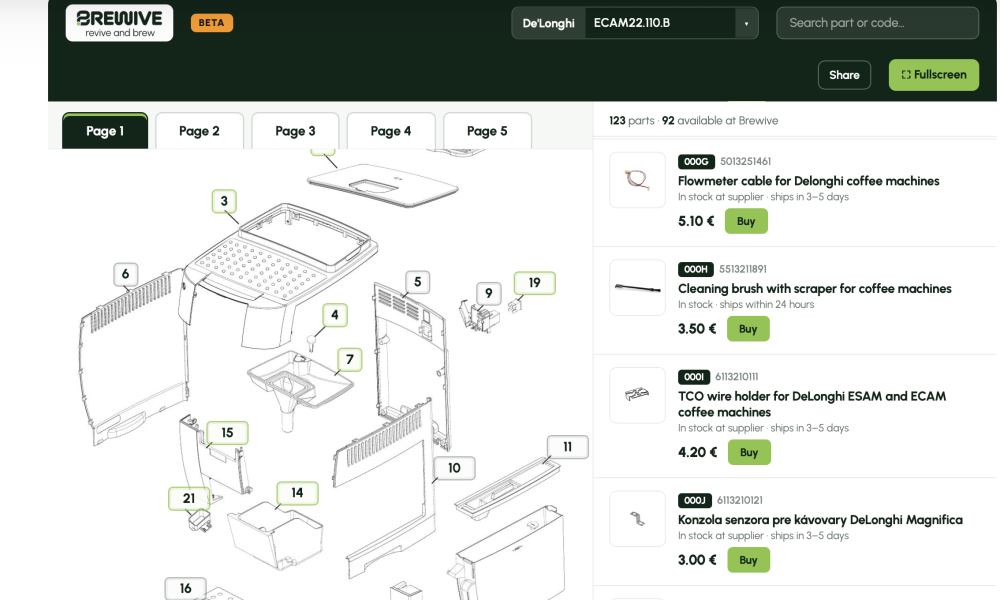

2. Click on the part you need. Every position is numbered exactly as it appears in the official service manual. Click a number and you'll instantly see the part name, a real product photo, the manufacturer's original part code, the price, and live stock availability.
3. Add the part to your cart. One click. No digging for the right SKU, and no risk of ordering a visually similar part from a different production series that simply won't fit.

Try it on your own coffee machine See how it works in practice on a real De'Longhi model — open the interactive diagram, find your machine, and click on any part.
Open interactive parts diagrams →

What exactly does a coffee machine parts diagram show?

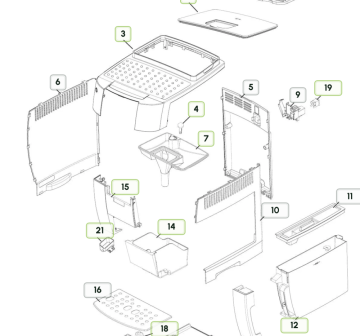

An exploded-view diagram (also commonly called an exploded view or spare parts diagram) shows every component of the coffee machine visually separated and arranged in the exact order in which the machine is assembled. Each part carries a position number. This is the primary reference professional technicians rely on to identify a part with absolute certainty — they don't go by the catalogue name alone, but by the precise location the part occupies within the machine.

That visual precision matters enormously. A single part often exists in several near-identical versions across different production runs, and the name alone won't reveal the difference. In our diagram you see each part exactly where it belongs in your specific model, right alongside the manufacturer's original part code. No more hesitating between two components that look the same but are not interchangeable.

Why did we build this feature?

Service exploded-view diagrams are typically locked inside manufacturers' internal documentation, accessible only to authorised service centres. As an authorised De'Longhi service partner, we have access to them — and we decided our customers should benefit from them too, linked directly to the spare parts we physically stock.

To our knowledge, no other spare-parts retailer offers anything like this. You're not just browsing the diagram — you're buying straight from it. Every item shows a live price and real-time stock availability.

Which diagrams are available right now?

• De'Longhi fully automatic and pump espresso machines — this is our launch brand, with more major brands already in the pipeline.
• Around 900 De'Longhi models available now — every model for which a manufacturer's parts diagram exists can be opened and browsed immediately.
• 85–90% parts availability for our most popular models. The majority of parts you click on in the diagram are in stock and ready to ship.
• Can't find a part? If a position is currently out of stock, a "Request this part" button appears. It automatically pre-fills an email with the exact part code and sends it straight to our team, who will check availability with our supplier right away.
• Full-screen mode for comfortable diagram reading even on smaller monitors, plus a Share button that lets you send a direct link to a specific model and diagram to a friend or technician.
• Localised into 9 languages — the tool works across all language versions of our site, with automatic currency conversion and redirection to the relevant local store.

The tool is currently labelled as a BETA version while we continue to refine it. If you run into any issues or your machine isn't in the list yet, use the feedback button built into the diagram — your message comes straight to us.

Other ways to find the right spare part

Can't find your model in the diagrams, or looking for an accessory the diagram doesn't cover? Browse our full coffee machine spare parts catalogue or visit our repair guides and tutorials, where you'll find step-by-step instructions for diagnosing the most common faults.

Frequently asked questions (FAQ)

What is a coffee machine exploded-view diagram?

It's a technical drawing from the manufacturer that shows every single component of the machine individually. Each part is numbered exactly as it appears in the official service documentation. It's the most reliable method of parts identification used by professional repair technicians.

Which coffee machine brands can I look up in the diagrams?

We currently support De'Longhi models — approximately 900 fully automatic and pump espresso machine variants for which a manufacturer's parts diagram exists. More major brands will be added soon.

Can I find this kind of feature anywhere else?

Not to our knowledge. Conventional stores let you search for parts only by a complex name or SKU code in a text-based catalogue. We're the only place where you click directly on a component in a visual exploded-view diagram and buy it on the spot.

Do I need to know the technical name of the broken part in advance?

Not at all — that's the whole point of our tool. All you need is your machine's model number (from the rating label). You identify the part visually by its logical position in the machine, with no need to guess any technical terminology.

What if the part I clicked on in the diagram is out of stock?

Instead of a buy button, the diagram will show a "Request this part" option. The system automatically prepares an email with the exact manufacturer part code and sends it to us. You don't have to fill in anything — we'll check availability and get back to you.

Find your part in seconds No endless searching, no guessing between parts that look almost identical.
Open interactive parts diagrams for your De'Longhi coffee machine →
